EC 34

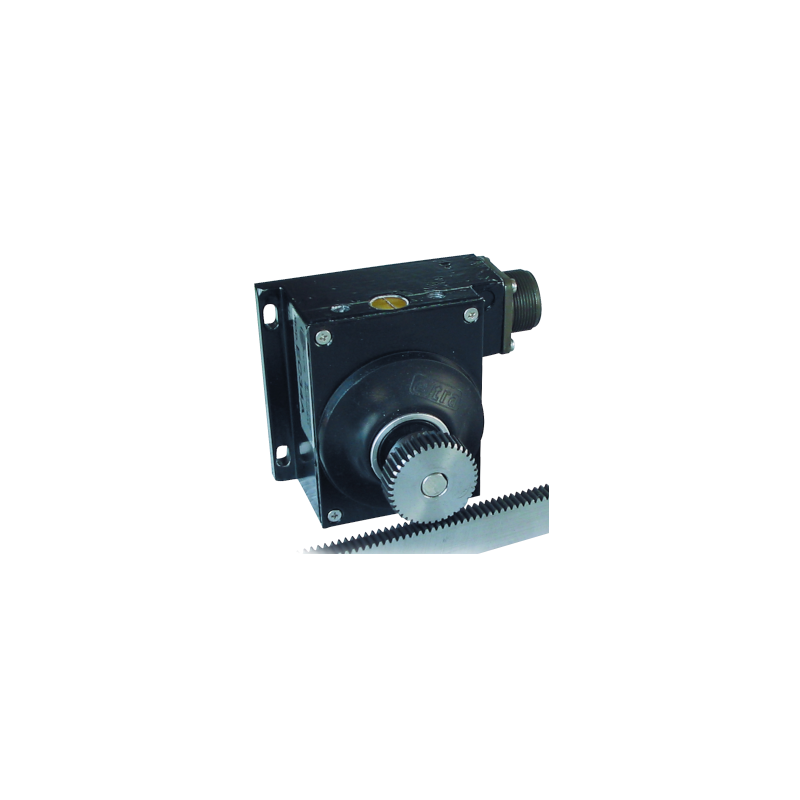

EC 34 series for racks with automatic game restart. This type of encoder has been designed to simplify the detection of linear measurements obtained up to now with the use of optical scales and to overcome the problematic detection of long distances. The encoder, enclosed within a sturdy aluminum casing, is equipped with a preload system that allows the automatic resumption of the play between rack and pinion.

Shaft diameter (max): 10 mm
Resolution (max): 2,500 ppr
Output frequency (max): 220 kHz
Operating temperature (C): -20 ... + 70
Degree of protection: 64
