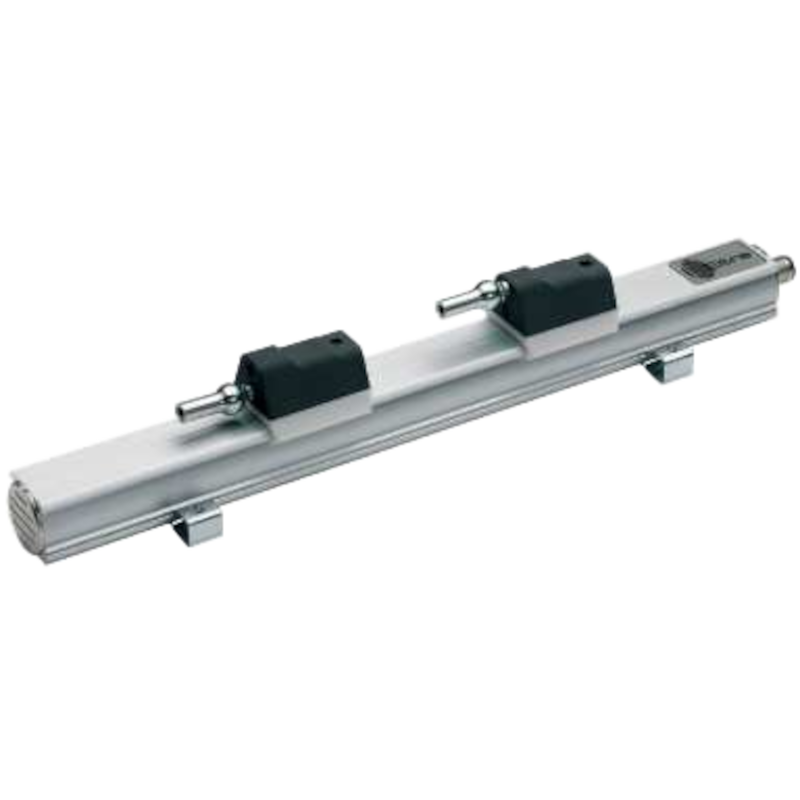

EMSPA

EMSPA series of magnetostrictive absolute transducers with analog output interface. Its peculiarity is the absence of electrical contact on the slider, so it does not have problems of wear or deterioration over time, a factor that makes this range also suitable for harsh environments, with considerable mechanical stress or in the presence of contaminants. The magnetostrictive technology guarantees high performance in speed and precision.

Stroke length: 50 ... 1500 mm
Linearity: 0.04% fs
Travel speed (max): 10 m / s
Operating temperature (C): -30 ... + 70
Degree of protection: IP 67
Sampling time: 1.5 ms
