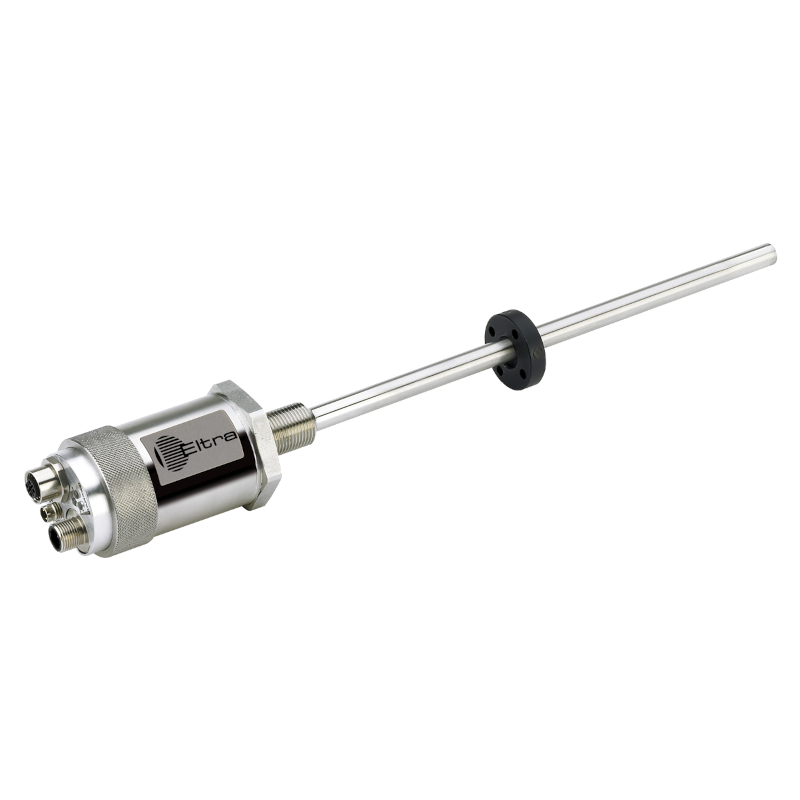

EMSSA

EMSSA series of rod magnetostrictive absolute linear transducers, with analog output interface. It is a range designed for internal mounting in applications subject to high pressures such as hydraulic and pneumatic cylinders, but thanks to its small size and resistant housing it is also suitable for harsh environments and high mechanical stress or in the presence of contaminants.

Stroke length: 100 ... 1,500 mm
Linearity: 0.0003
Travel speed (max): 10 m / s
Operating temperature (C): -40 ... + 70
Degree of protection: IP 67
Sampling time: 1.5 ms
