FE

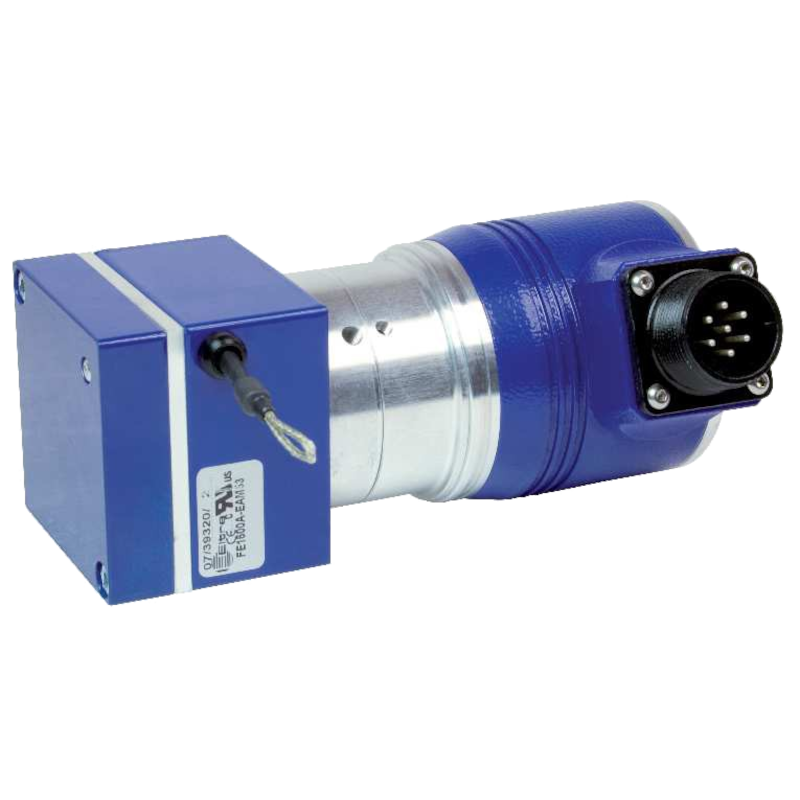

FE 1500 / FE 4000 series of wire encoders with the possibility of supporting maximum lengths of 4 meters. The applied encoder can be incremental or absolute multiturn (also with SSI or PROFIBUS interface). Ideal for linear position measurements even in harsh environments due to its proven robustness. Wide range of uses including extruders, vertical warehouses, presses and others.

Stroke length: 1,500 - 4,000 mm
Resolution (max): 0.1 mm
Travel speed (max): 0.85 m / s
Operating temperature (C): 0 ... + 60
Degree of protection: 54
