Eltra
EA 58/63 Parallel/SSI A/B/C/D/E

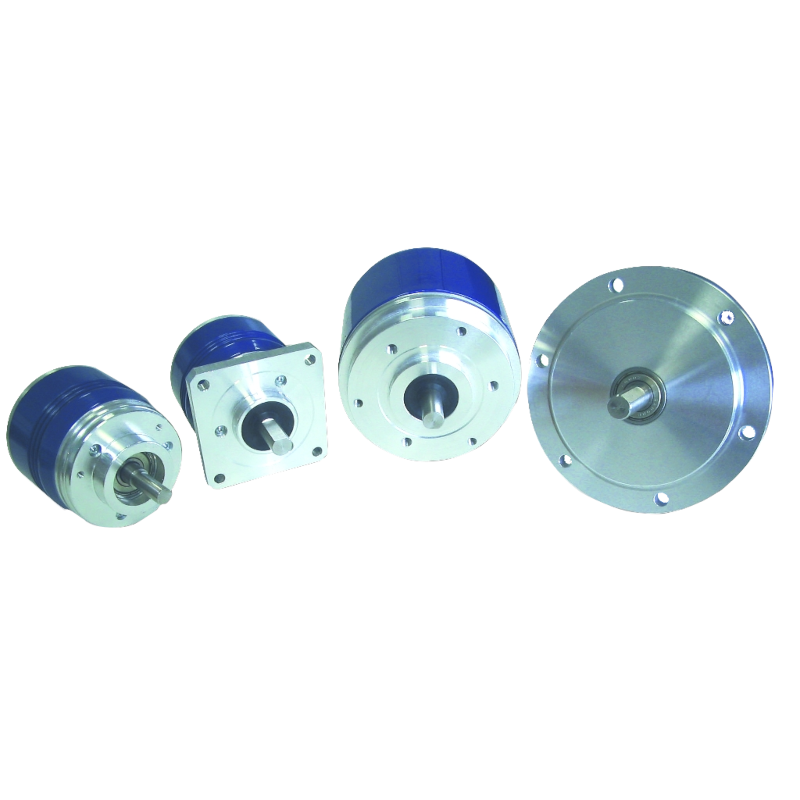

EA 58 - EA 63 series (58-63 mm) of absolute single-turn, solid shaft and parallel or SSI optical encoders. This series of encoders is available with cable or connector output and can reach a degree of protection up to IP66. The output configurations are both Gray and binary code and the output electronics cover all fields of application.
Outside diameter (max): 63 mm
Shaft diameter (max): 10 mm
Resolution (max): 13 bit
Output frequency (max): 25 kHz
Operating temperature (C): 0 ... + 60
Degree of protection: IP 66
Outside diameter (max): 63 mm
Shaft diameter (max): 10 mm
Resolution (max): 13 bit
Output frequency (max): 25 kHz
Operating temperature (C): 0 ... + 60
Degree of protection: IP 66
