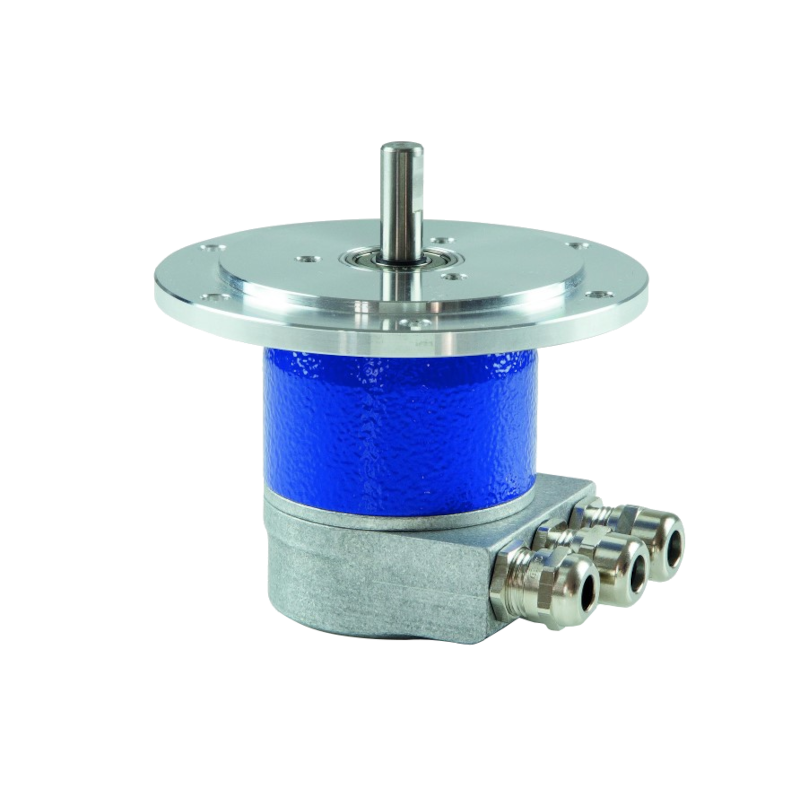

EA 90/115 Profibus A

The series of single-turn encoders EA 90 - EA 115  with  solid shaft conforms to the PROFIBUS DP standard  (described in the European Standard EN 50170 Vol. 2) and complies with the predefined profile for encoders PROFIBUS-Profile for Encoders, Order No. 3,062. The version with the Profibus DP interface maintains the same maximum resolution (8,192 Pos / rev) and efficiency characteristics of the stand-alone version, but adds the potential and flexibility typical of the Profibus DP network.

Outside diameter (max): 115 mm
Shaft diameter (max): 11 mm
Resolution (max): 13 bit
Output frequency (max): 12 Mbaud
Operating temperature (C): 0 ... + 60
Degree of protection: IP 66
