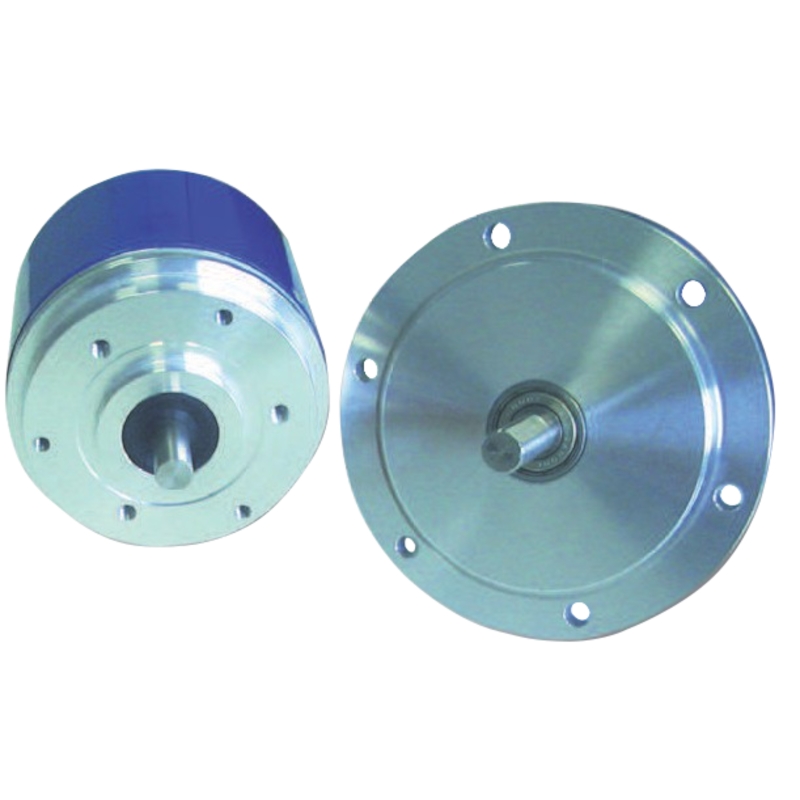

EAM 90/115 Parallel/SSI A

Series of EAM 90 - EAM 115  multiturn absolute optical encoders (90 and 115 mm) with solid shaft, available with parallel and SSI output. These are devices made for applications that require high precision even on extensive linear development and with mechanical and electronic characteristics that allow correct operation even in the most severe conditions.

Outside diameter (max): 115 mm
Shaft diameter (max): 11 mm
Resolution (max): 13 bit ST / 14 bit MT
Output frequency (max): 25 kHz (par.) / 100 kHz ... 1 MHz (SSI)
Degree of protection: IP 66
Operating temperature (C): 0 ... + 60
