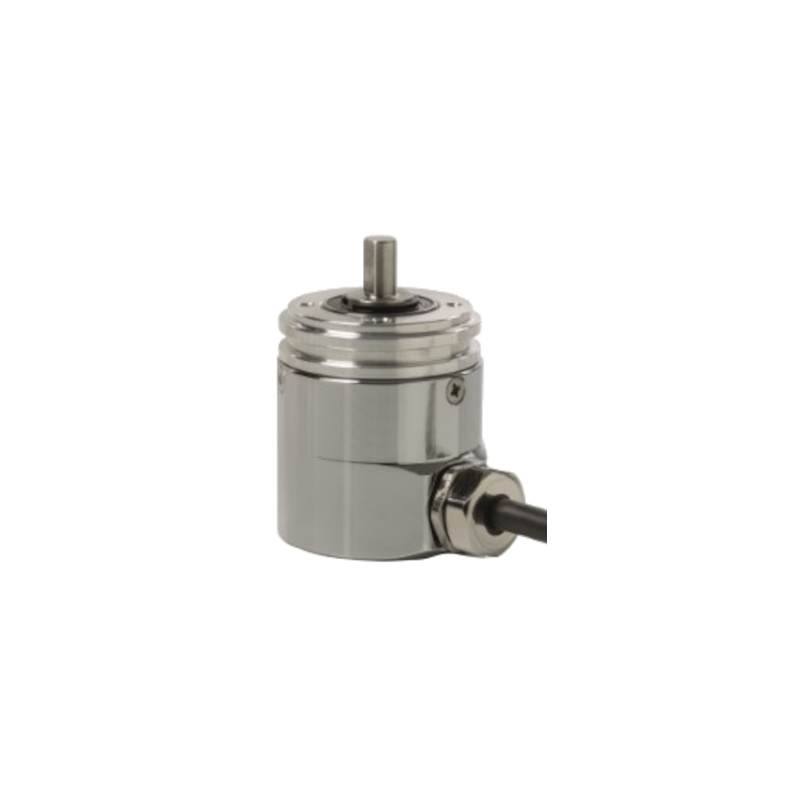

EMA 36 B
EMA 36 (36 mm) single- turn absolute encoder series with contactless magnetic technology. It is an extremely robust, compact and versatile line, easy to install thanks to the zeroing of the code. Various flanges are available (both for solid shaft and for blind / through shaft) which make it suitable for various mounting forms.
Outside diameter (max): 36 mm
Shaft diameter (max): 6 mm
Resolution (max): 15 bit
Output frequency (max): 100 kHz ... 1 MHz
Operating temperature (C): -30 ... + 100
Degree of protection: IP 67 / IP 65
Linearity: ± 0.35 max
Outside diameter (max): 36 mm
Shaft diameter (max): 6 mm
Resolution (max): 15 bit
Output frequency (max): 100 kHz ... 1 MHz
Operating temperature (C): -30 ... + 100
Degree of protection: IP 67 / IP 65
Linearity: ± 0.35 max
