Eltra
EMA 50 A/B

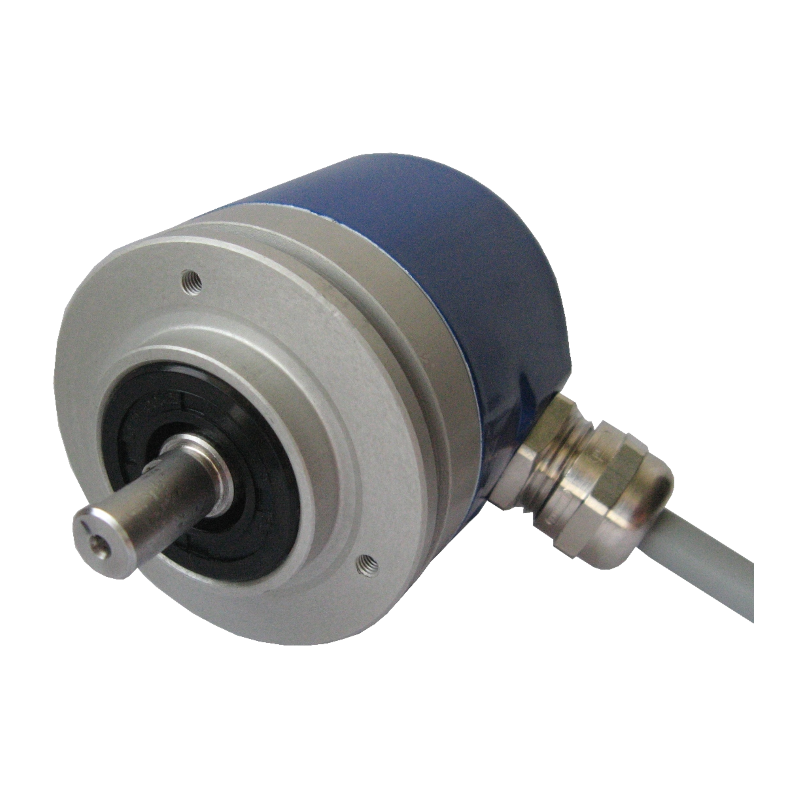

Series of EMA 50 single-turn absolute encoders (50 mm) with solid shaft, with integrated magnetic technology. Models with different mechanical flanges (also anodized) and SSI and parallel electronic configurations are available with power supplies up to 30 Vdc.
Outside diameter (max): 50 mm
Shaft diameter (max): 10 mm
Resolution (max): 13 bit
Output frequency (max): 25 kHz (par.) / 100 kHz ... 1 MHz (SSI)
Operating temperature (C): -25 ... + 85
Degree of protection: IP 67
Outside diameter (max): 50 mm
Shaft diameter (max): 10 mm
Resolution (max): 13 bit
Output frequency (max): 25 kHz (par.) / 100 kHz ... 1 MHz (SSI)
Operating temperature (C): -25 ... + 85
Degree of protection: IP 67
