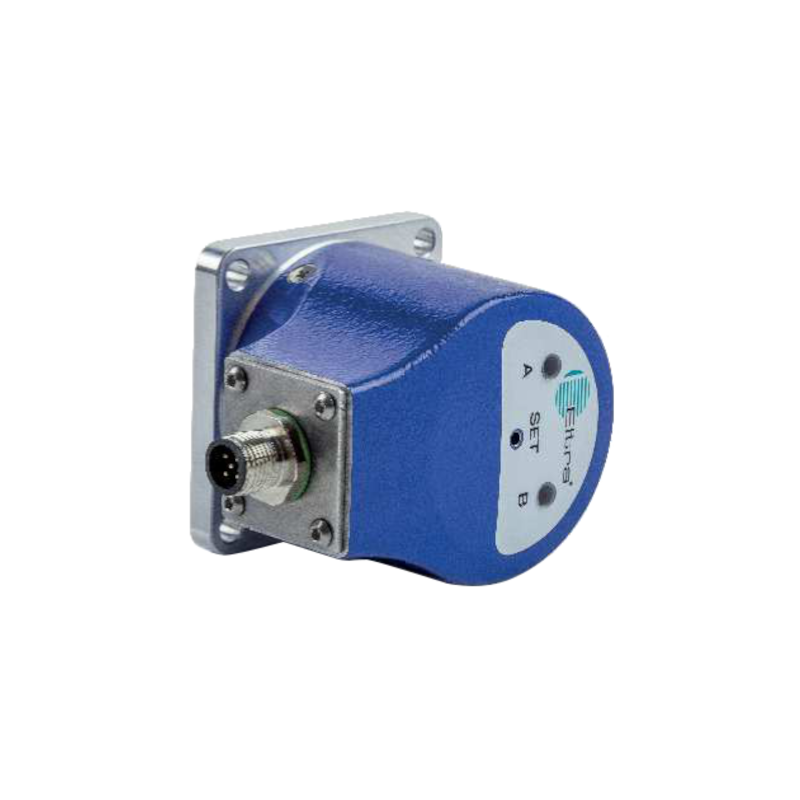

EAL 58/63 Analog F/G

EAL 58 - EAL 63 single-turn absolute optical encoder series (58 and 63 mm) with blind shaft, available with linear analogue output in voltage (0V / 0V) and in current (0mA / 4mA). These are devices made for applications that require high precision even on extensive linear development and with mechanical and electronic characteristics that allow correct operation even in the most severe conditions.

Outside diameter (max): 63 mm
Shaft diameter (max): 15 mm
Resolution (max): 16 bit
Operating temperature (C): -20 ... + 85 C (-4 ... + 185 F)
Degree of protection: IP 67
Linearity: ± 250 arc-sec
